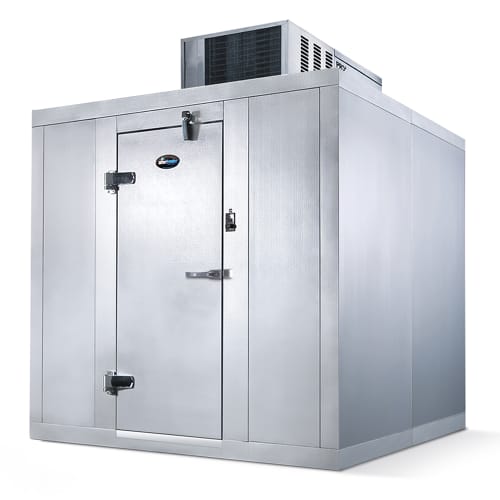

Amerikooler QF081077**FBSM-O 8' x 10' Outdoor Walk-In Freezer w/ Top-Mounted Compressor - Floor

Product Details

• Quick-ship outdoor unit
• features modular, tongue-and-groove wall, ceiling, and floor panels with a cam-action locking system and compression gaskets
• Hardware and installation instruction kit with shop drawing, detailed installation instructions, hex wrench for cam-lock panel assembly, and PVC press fit caps
• Panels built with 4-in.-thick AK-XPS4 rigid foam insulation that delivers R-32 thermal resistance value
• Ceiling and wall panels laminated with stucco-embossed, corrosion-resistant 26-ga. Acrylume coating
• Floor panels finished with thin layer of smooth aluminum
• Floor can accommodate an evenly distributed load of 600 lbs. per square foot
• 30-in.-wide x 76-in.-tall entrance door with super cam-rise spring-assisted hinges, door closer, 3-sided magnetic gasket, and flexible double wiper
• Lockable deadbolt key/padlock handle
• Inside safety release mechanism
• LED light above door jamb
• Safety pilot light switch
• Digital thermometer with LED temperature readout
• Heated pressure relief vent mounted on door jamb
• Temperature-controlled heater wire built into door
• Conduit between switch box and outlet junction box

Product Features

*Free shipping on Amerikooler QF081077**FBSM-O within the 48 contiguous states.

Dimensions & Utilities

• Refrigeration unit: 58 in. W x 52¹⁄₂ in. D x 40³⁄₄ in. H
• Walk-in freezer: 9 ft. 9¹⁄₄ in. W x 7 ft. 10 in. D x 7 ft. 7 in. H
• 16.74 A
• 208-230 V/60 Hz/1 ph

From The Manufacturer

Quick Ship Outdoor Walk-In Freezer, 7'-10" W x 9'-9 1/4" L x 7'-7" H, With Floor, 4” thick AK-XPS4 insulation providing R-29 for coolers & R-32 for freezers, 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume on all interior & exterior surfaces, NSF aluminum floor rated at 600 Lbs./sq. ft. of uniformly distributed load, flush self-closing door, digital LED thermometer with pilot light switch, super cam-rise spring assisted hinges & door closer, -10°F, top mount, integrated, Outdoor refrigeration, PT0069LBTEMSA, sized at 90°F ambient temperature, ships in 48 hours - subject to terms & conditions, UL, Made in USA (Note: Customers ordering the machine for installation in California, Florida, Oregon, and Washington may face state-specific restrictions on its use. Please contact KaTom Customer Care at 1-800-541-8683 for assistance.)

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Brochure
