Veetsan Star High Temp Rack Undercounter Dishwasher w/ 30 Racks/hr Capacity, 240v/1ph (502737)
by Veetsan Star
Original price
$5,259.37
-
Original price
$5,259.37
Original price
$5,259.37
$5,259.37
-
$5,259.37
Current price
$5,259.37
Product Details
- Undercounter design
- Cleans 30 racks or 540 dishes per hour when incoming water is 122 degrees F
- Working cycle time: 120-240 seconds
- Cleans 1 rack with 33/50 gal. of hot water

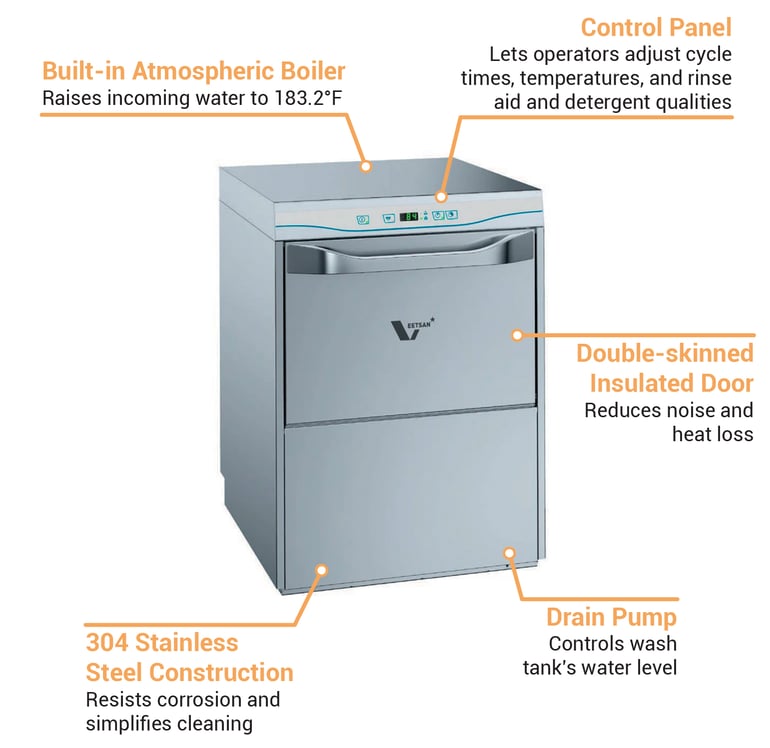

- Built-in 39/50-gal. stainless steel atmospheric boiler raises
- Temperature interlock system maintains wash and rinse cycle temperatures
- Rotating slanted washing arms and high-powered wash pump
- Built-in rinse aid and detergent dispenser
- Automatic initial and continuous cycle loading
- 4-second pause between wash and rinse cycle
- Electronic controls with built-in programming and self-diagnostics
- Digital display control panel with on-site personalization of washing and rinsing cycles' times and temperatures and rinse aid and detergent quantities
- Digital temperature readout
- Automatic self-cleaning cycle
- Drain pump for wash tank water level control
- Soil-collecting large tank filter
- Large, deep-drawn wash tank
- Pipe-free, round-cornered internal wash area
- 304 stainless steel front panel, door, wash tank, tank filters, wash arms, and rinse arms
- Insulated double-skin door with counterbalanced mechanism
- Interchangeable rinse and wash arms
- Cover plate on back panel
- features drain pump and rinse aid and detergent dispenser pumps
- Required water supply temperature: 50-122 degrees F
- Wash temperature: 154.4 degrees F
- Rinse temperature: 183.2 degrees F
- Noise level: 61 dBA
- Required inlet water supply pressure: 7-102 PSI
Product Features
*Free shipping on Veetsan Star 502737 within the 48 contiguous states.
Dimensions & Utilities
- Cell: 1917/25 in. W 1917/25 in. D x 139/50 in. H
- Overall: 235/8 in. W x 265/8 in. D x 321/4 in. H
- 6.85 kW, 1 HP
- 240 V/60 Hz/1 ph
- 1ā2-in. drain line
From The Manufacturer
(VLAI1G4) Undercounter double skin dishwasher with drain pump, detergent and rinse aid dispensers (plug-in), 30 racks/h, 240V/60Hz
*Image may not depict product color, inclusions or accessories.
Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Veetsan Star |
| Also Known As | VLAI1G4 |
| Cycle Period | 1 min 30 sec |
| Depth (in) | 26.62 |
| Design | Rack |
| Drain Type | Pump |
| For Use With | Dish and Glass |
| Height (in) | 32.25 |
| Hertz | 60 |
| Phase | 1 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 30 |
| Rating | Good |
| Type | High Temp |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor |
| Water Inlet (in) | 1/2 |
| Width (in) | 23.62 |
| Weight | 165.00 |
