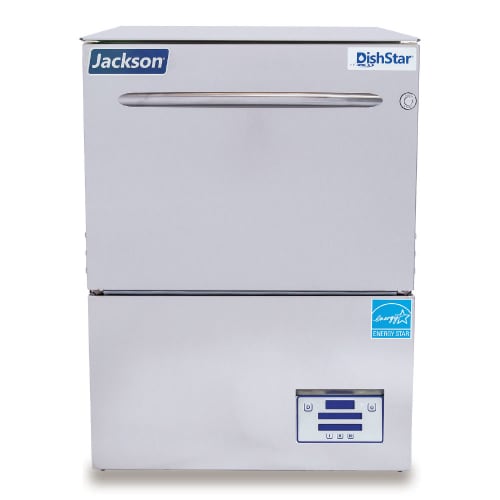

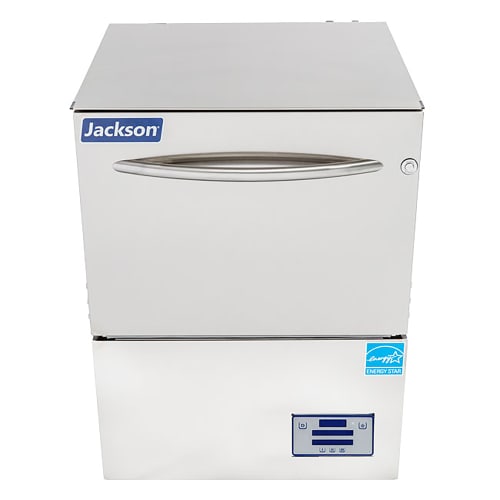

Jackson DISHSTAR HT-E-SEER DishStar® High Temp Rack Undercounter Dishwasher w/ 20 Racks/hr Capacity, Built-in Booster, 230v/1ph
by Jackson
Original price
$8,291.00
-
Original price
$8,291.00
Original price
$8,291.00
$8,291.00
-
$8,291.00
Current price
$8,291.00
Product Details
- Cycle I washes 24 racks per hour (20 racks per hour with suggested NSF load time)
- Uses 0.60 gal. of water per rack (14.4 gallons per hour)
- 3-gal. wash tank capacity
- 1.66-gal. rinse tank capacity
- High-temperature sanitization
- Operates with single cold water connection
- Built-in booster heater raises water temperature 70 degrees F
- Sani-Sure system increases temperature of rinse water
- SEER mechanism collects hot water vapor
- Solid-state controls
- Digital LED temperature and operator display
- 3 timed operating cycles: Cycle I (145 seconds), Cycle II (213 seconds), and Cycle III (313 seconds)
- Automatic tank fill with push-button start
- Energy-saver mode
- Delime cycle
- Onboard service diagnostics
- Recirculating wash followed by fresh-water rinse
- Chemical pumps and priming switches built in
- Automatic pumped drain for floor and wall drain installations
- 1-HP stainless steel wash pump motor
- Pressure regulator with water hammer arrestor
- Undercounter unit
- Stainless steel construction
- Double-wall cabinet
- 141⁄4-in. inside clearance height
- Labyrinth-type door-seal design
- Door switch and interlock
- 1 peg rack and 1 combination rack included
- Above-water scrap basket
- 13⁄4-in. drain height
- Required incoming water temperature: 40-90 degrees F
- Minimum wash temperature: 155 degrees F
- Minimum rinse temperature: 180 degrees F
- Required flow pressure: 10 PSI
- 1⁄4-in. wall clearance
Product Features
*Free shipping on Jackson DISHSTAR HT-E-SEER within the 48 contiguous states.
Dimensions & Utilities
- 241⁄4 in. W x 267⁄8 in. D x 335⁄16 in. H
- 27.6 A, 9.2 kW, 1 HP
- 230 V/60 Hz/1 ph
- 5⁄8-in. drain connection
- 3⁄4-in. male GHT incoming water connection
From The Manufacturer
DishStar® HT-E-SEER Dishwasher, undercounter, high temperature sanitizing, steam elimination & Energy Recovery 24-1/4”W, cold water connection only, built-in booster heater with Sani-Sure final rinse system, approximately (20) racks/hour, (0.65) gals of water per rack, universal timer, digital LED control panel, delime cycle, built-in chemical pumps & priming switches, pressure regulator, auto fill, 1 HP stainless steel wash pump, double wall stainless steel cabinet, c-ETL-us, ETL-Sanitation, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Jackson |
| Cycle Period | 2 min 25 sec |
| Depth (in) | 26.88 |
| Design | Rack |
| Drain Type | Pump |
| For Use With | Dish and Glass |
| Glasses per hour | 720 |
| Height (in) | 33.25 |
| Hertz | 60 |
| Includes | Rack |
| Phase | 1 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 20 |
| Rating | Better |
| Series | DishStar® |
| Special Features | Built in Booster |
| Special Features | Steam Reducer |
| Type | High Temp |
| Voltage | 230 |
| Warranty | 1-year Limited Parts & Labor |
| Water Inlet (in) | 3/4 |
| Width (in) | 24.25 |
| Weight | 270.00 |
