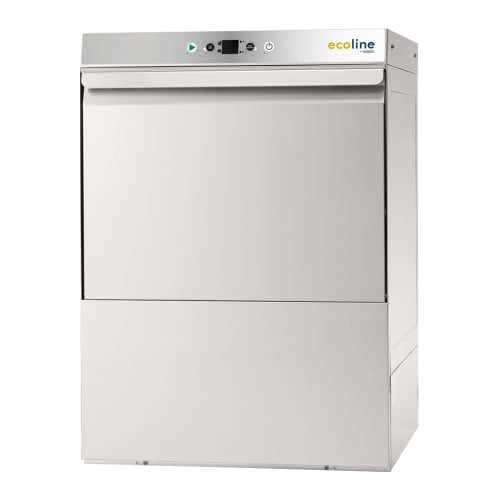

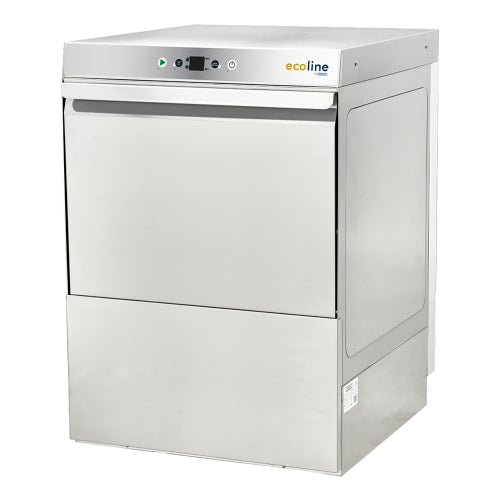

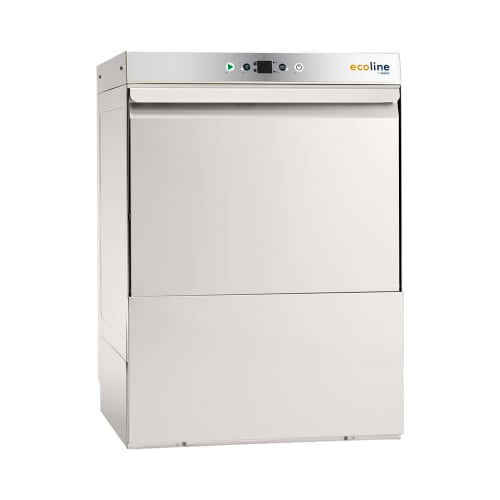

Ecoline by Hobart EUH-1 High Temp Rack Undercounter Dishwasher w/ 24 Racks/hr Capacity, 208-240v/1ph

Product Details

• Can sanitize 24 racks per hour
• 5³⁄₁₀-gal. wash tank
• Undercounter unit with high-temperature sanitization system
• 2-minute cycle time
• Uses ⁹¹⁄₁₀₀ gal. of water per rack (21⁹⁄₁₀ gal. per hour)
• Electric heating unit for tank
• Built-in booster heater with Sense-a-Temp technology
• Soft start
• Snap-in revolving upper and lower anti-clogging wash and rinse arm
• Removable 3-part stainless steel scrap screen
• Automatic pumped drain
• Automatic fill
• Delime cycle
• Chemical pumps
• User interface with digital temperature display
• Service diagnostics with error notifications
• Minimum wash and rinse operating temperature: 110 degrees F

Product Features

*Free shipping on Ecoline by Hobart EUH-1 within the 48 contiguous states.

Dimensions & Utilities

• Flat rack: 20 in. W x 20 in. D
• Peg rack: 20 in. W x 20 in. D
• Overall: 22¹¹⁄₁₆ in. W x 24 in. D (39⁹⁄₁₆ in. D when door is open) x 32⁵⁄₁₆ in. H
• 24.2-27.5 A, 5.5 kW, ⁴¹⁄₅₀ HP
• 208-240 V/60 Hz/1 ph
• 1³⁄₈-in.-diameter hole for 1-in. trade-size conduit
• ³⁄₄-in. female garden hosing fitting on 6-ft.-long hose supplied with unit

From The Manufacturer

Dishwasher, undercounter, 22 11/16"W x 24"D x 32 5/16"H, high temperature sanitizing, 208-240/60/1, (24) racks/hr., .91 gal/rack, delime cycle, service diagnostics with error notifications, soft start, chemical pumps, cULus, NSF
