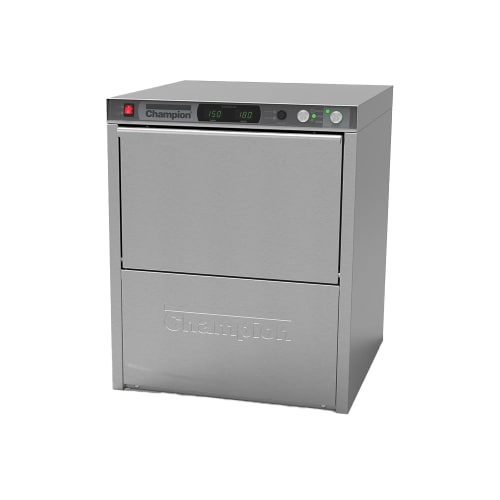

Champion UH330ADA High Temp Rack Undercounter Dishwasher w/ 30 Racks/hr, Built-in Booster,208v/1ph
Product Details

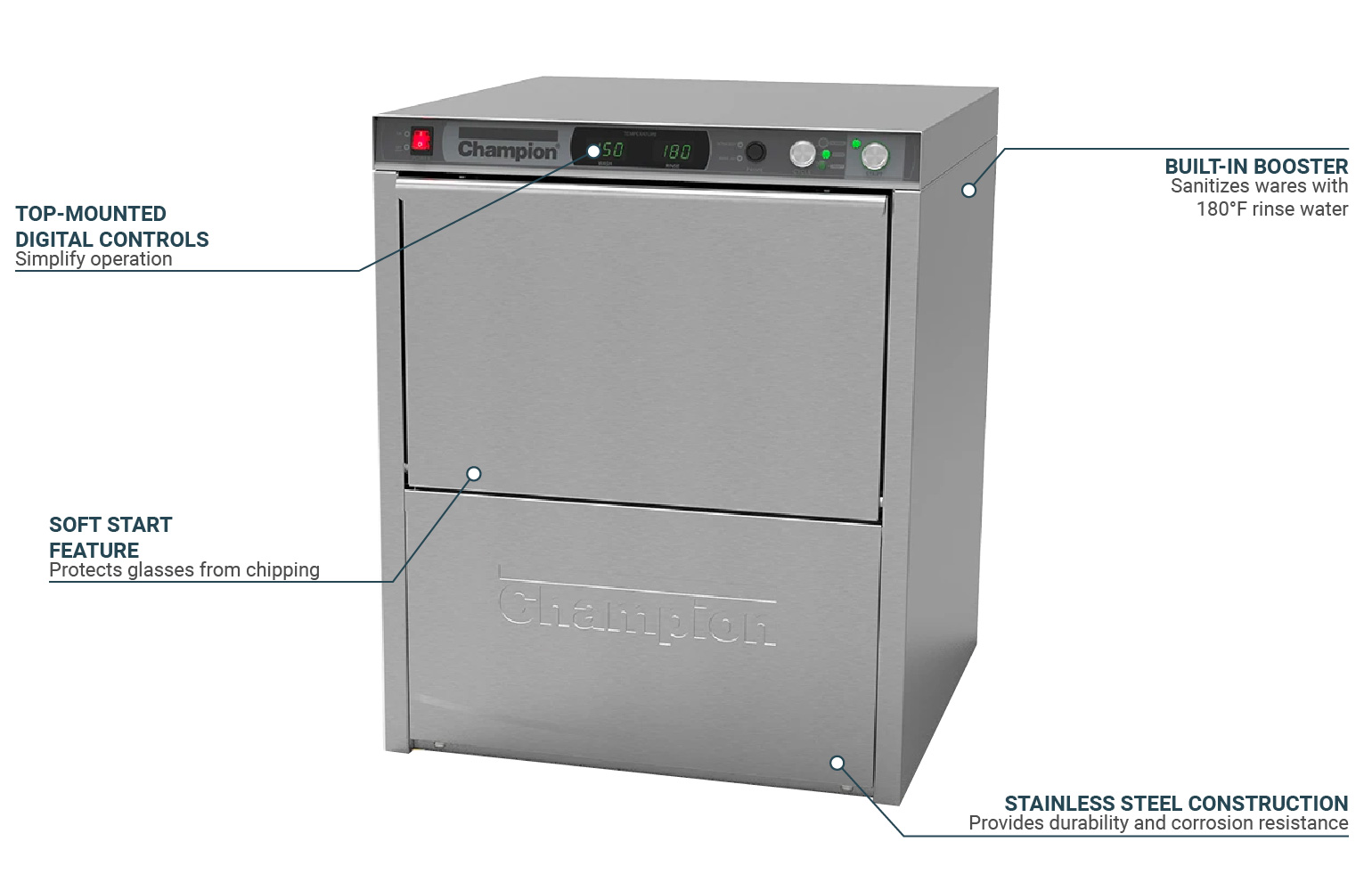

- For undercounter installation
- Washes 30 racks per hour
- Heavy-duty stainless steel construction
- 1 peg rack and 1 flat rack
- 3 cycle time options: 120, 200, and 277 seconds
- High-temperature sanitizing
- Insulated booster and panels
- Standard detergent and rinse aid pumps
- Built-in electric booster maintains final rinse water reaches 180 degrees F
- Soft start feature protects glasses from chipping and breaking
- Top-mounted digital temperature control and display
- Automatic drain cycle and pumped drain
- Stainless steel upper, lower, and wash and rinse arms
- Heat recovery condensation removal
- Dry assist feature speeds up drying
- ADA compliant
Product Features
*Free shipping on Champion UH330ADA within the 48 contiguous states.
Dimensions & Utilities
- 24 in. W x 263⁄4 in. D (391⁄2 with door open) x 297⁄8 in. H
- 1⁄2-in. cold water inlet
- 2 kW, 1 HP
- 208V/60 Hz/1 ph
From The Manufacturer
Dishwasher, undercounter, 24"W x 26-3/4"D x 29-7/8"H (ADA compliant), high temperature sanitizing, with Heat Recovery Condensate Removal, Dry Assist & StemsSure™ soft start to protect glasses & dishes from chipping & breaking, (30) racks per hour capacity, 120 second cycle, top mounted precise digital temperature display & Vari-cycle controls, 12"H door opening, stainless steel top & side panels, insulated booster & panels, detergent & rinse aid pumps, automatic drain cycle, pumped drain, built-in electric booster for 180°F final rinse water (standard 66°F/82°C rise), rinse sentry – extends the cycle time to ensure 180°F final rinse, (1) peg rack, (1) flat rack, 1 HP wash pump motor, Multi-Power – features: Multi-Volt & Multi-Phase (Enables for infield conversion to 208-240 volt and/or single to three phase with ease), NSF, cETLus, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Champion |
| Cycle Period | 2 min 25 sec |
| Depth (in) | 26.75 |
| Design | Rack |
| Drain Type | Pump |
| For Use With | Dish and Glass |
| Height (in) | 29.87 |
| Hertz | 60 |
| Includes | Rack |
| Phase | 1 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 30 |
| Rating | Better |
| Type | High Temp |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor |
| Water Inlet (in) | 1/2 |
| Width (in) | 24 |
| Weight | 215.00 |
