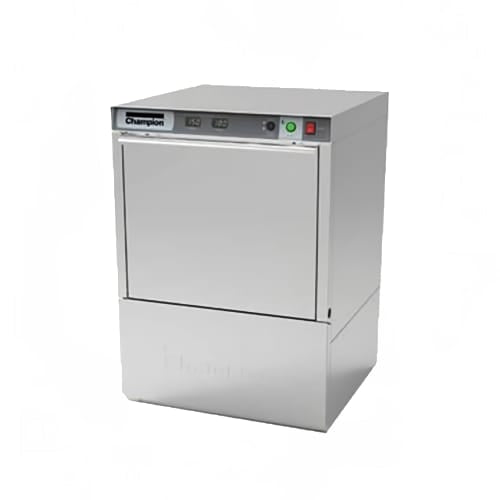

Champion UH130B High Temp Rack Undercounter Dishwasher w/ 25 Racks/hr, Built-in Booster,208v/3ph
Product Details
- High-temperature dishmachine
- Uses 38 gal. of water per hr.
- Can clean 25 racks per hr.
- Door safety switch
- Rinse aid and detergent pumps
- Stainless steel top and side panels
- Delime cycle counters mineral buildup
- Booster heater increases temperature of incoming water
- Double-wall construction decreases unit noise
- Wash Refresh automatically drains chamber for new load water
- Digital temperature monitoring
- Low-water protection for tank heat
- Rinse Sentry continues rinse cycle until it reaches 180 degrees F
- 15.75-in. door opening facilitates loading of large wares
- StemSure protects fragile items
- 2 min. 21 sec. cycle
- Minimum incoming water temperature: 110 degrees F
- Ideal incoming water pressure: 25-95 PSI
Product Features
Dimensions & Utilities
- 24 in. W x 25 in. D x 33.75 in. H
- 22 A, 8 kW, 1 HP
- 208 V/60 Hz/3 ph
*Free shipping on Champion UH130B within the 48 contiguous states.
From The Manufacturer
Dishwasher, undercounter, 24"W x 25"D x 33-3/4"H, high temperature sanitizing, with StemsSure™ soft start to protect glasses & dishes from chipping & breaking, (25) racks per hour capacity, 141 second cycle, top mounted controls with prime switch, 15-3/4"H door opening, door safety switch, advanced digital thermometer monitoring, stainless steel top & side panels, quiet double-wall construction, detergent & rinse aid pumps, pumped drain, built-in electric booster for 180°F final rinse water (standard 70°F/39°C rise), rinse sentry – extends the cycle time to ensure 180°F final rinse, low-water tank heat protection, automatic tank fill, (1) peg rack, (1) flat rack, 1 HP wash pump motor, fill & dump operation, Shear Energy – a reduction in energy requirements while maximizing performance, Multi-Power – features: Multi-Volt & Multi-Phase (Enables for infield conversion to 208-240 volt and/or single to three phase with ease), NSF, cETLus, 208v/60/3ph
*Image may not depict product color, inclusions or accessories.
Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Champion |
| Cycle Period | 2 min 21 sec |
| Depth (in) | 25 |
| Design | Rack |
| Drain Type | Pump |
| For Use With | Dish and Glass |
| Glasses per hour | 900 |
| Height (in) | 33.75 |
| Hertz | 60 |
| Includes | Racks |
| Phase | 3 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 25 |
| Rating | Better |
| Special Features | Built in Booster |
| Type | High Temp |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor |
| Water Inlet (in) | 1/2 |
| Width (in) | 24 |
| Weight | 215.00 |
