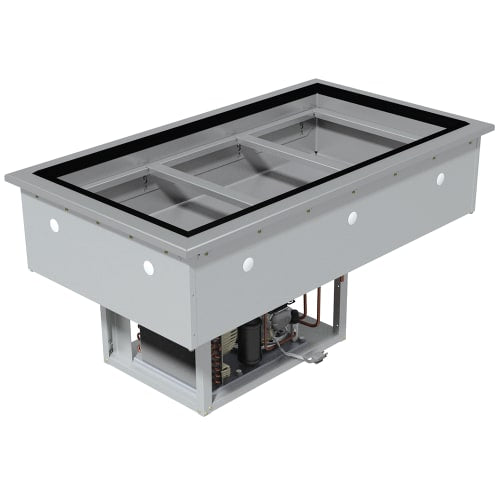

Advance Tabco DIRCP-3 47" Drop-In Refrigerator w/ (3) Pan Capacity, Cold Wall Cooled, 115v

Product Details

• Stainless steel construction
• Galvanized outer jacket
• 3 wells
• Fully insulated, drop-in configuration
• Black molding and thermal breaker
• High cooling capacity
• Thermostatic temperature controls
• Adapter bars for 12-in. x 20-in. pans included
• 1-in. diameter drain
• R-404A refrigerant
• Fully contained condensing unit
• Sight glass maintains refrigeration system charges
• Expansion valve
• Refrigerant filter drier
• Aluminum encased copper tube evaporator panels

Product Features

*Advance Tabco DIRCP-3 is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

Dimensions and Utilities

• Condenser: 13²¹/₁₀₀ in. H
• Overall: 47 in. L x 26³⁄₄ in. W x 23¹³/₁₆ in. D
• Cut-out dimensions: 45⁵/₈ in. L x 25¹⁄₂ in. W
• 8.0 A, ¹/₅ HP
• 115 V/60 Hz/1 ph, with 8-ft. cord and NEMA 5-15P plug

*Advance Tabco DIRCP-3 is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

Refrigerated Cold Pan, Drop-in, 25.5" x 45.625" cut out, holds (3) 12" x 20" pans, stainless steel top, fully self contained condensing unit (22.625" x 22.625" x 13.21"), digital programmable thermostat, aluminum encased copper tube evaporator panels, expansion valve, NEMA 5-15P, 115V/60Hz/1-ph, 8A, 1/4 HP, R404-A, 1500 btu

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Manual
• Catalog
